390/488/558/638 nm BrightLine® quad-band bandpass filter

Semrock Part Number: FF01-390/488/558/638-25

IDEX Part Number: FL-439801  /

Semrock
Individual multiband fluorescence bandpass filters that utilize Semrock's patented single-substrate construction. These filters have extremely high transmission, steep and well-defined edges, and outstanding blocking between the passbands. All thin-film, hard-coated construction for unsurpassed performance and reliability.
  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 649.60 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Add to List Add to List

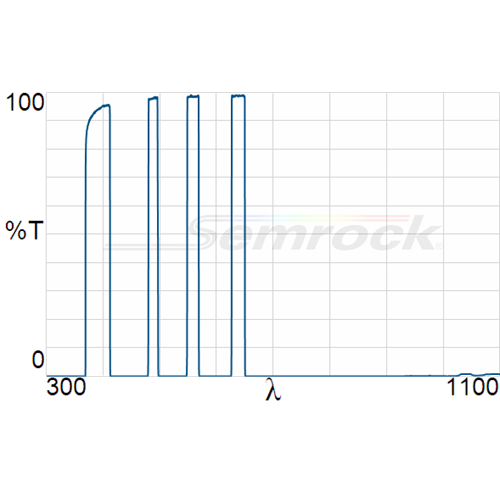

Optical Specifications Value
Transmission Band 1 Tavg > 85% 370 – 410 nm
Transmission Band 2 Tabs > 85% 400 – 408 nm
Transmission Band 3 Tavg > 93% 483 – 493 nm
Transmission Band 4 Tabs > 90% 485 – 491 nm
Transmission Band 5 Tavg > 93% 550 – 560 nm
Transmission Band 6 Tabs > 90% 552 – 558 nm
Transmission Band 7 Tavg > 93% 556 – 565 nm
Transmission Band 8 Tabs > 90% 558 – 564 nm
Transmission Band 9 Tavg > 93% 630 – 645 nm
Transmission Band 10 Tabs > 90% 632 – 643 nm
Blocking Band 1   ODavg > 4 200 – 275 nm (Design specification - measurements are noise-floor limited)
Blocking Band 2 ODavg > 4 275 – 361.5 nm
Blocking Band 3 OD > 3.5 417 nm
Blocking Band 4   ODavg > 8 421 – 470 nm (Design specification - measurements are noise-floor limited)
Blocking Band 5 OD > 3.5 475 nm
Blocking Band 6 OD > 3.5 501 nm
Blocking Band 7   ODavg > 8 506.5 – 540 nm (Design specification - measurements are noise-floor limited)
Blocking Band 8 OD > 3.5 543 nm
Blocking Band 9 OD > 3.5 572 nm
Blocking Band 10   ODavg > 8 577 – 616 nm (Design specification - measurements are noise-floor limited)
Blocking Band 11 OD > 3.5 622 nm
Blocking Band 12 OD > 3.5 654 nm
Blocking Band 13   ODavg > 8 662 – 750 nm (Design specification - measurements are noise-floor limited)
Blocking Band 14 ODavg > 4 750 – 925 nm
Blocking Band 15 ODavg > 2 925 – 1100 nm
Center Wavelength 1 390 nm
Center Wavelength 2 488 nm
Center Wavelength 3 557.5 nm
Center Wavelength 4 637.5 nm
Guaranteed Minimum Bandwidth 1 40 nm
Guaranteed Minimum Bandwidth 2 10 nm
Guaranteed Minimum Bandwidth 3 15 nm
Guaranteed Minimum Bandwidth 4 15 nm
General Filter Specifications Value
Angle of Incidence 0 ± 5 degrees
Physical Filter Specifications   Value
Transverse Dimensions (diameter) 25 mm
Transverse Tolerance + 0.0 / - 0.1 mm
Filter Thickness (mounted) 5.0 mm
Filter Thickness Tolerance (mounted) ± 0.1 mm
Clear Aperture ≥ 21 mm
Scratch-Dig 60-40
Filter Thickness (unmounted) 2.0 mm
Orientation Arrow on ring indicates preferred direction of propagation of light
