405/488/555/640 nm lasers BrightLine® quad-edge laser dichroic beamsplitter

Semrock Part Number: Di01-R405/488/555/640-25x36

IDEX Part Number: FL-439697  /

Semrock


Optimized beamsplitters for the most popular lasers used in fluorescence imaging, including newer all-solid-state lasers for conventional laser based microscopy such as confocal imaging. All beamsplitters in this category have exceptional reflectance at the laser wavelengths, and anti-reflection (AR) coatings to minimize imaging artifacts resulting from the coherent laser light. This dichroic beamsplitter is optimized for reflecting laser beams up to 2.5 mm in diameter while minimizing RWE.

  • Price Not Available.
  • Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • Price Not Available.
  • 666.60 USD Each
    US Domestic pricing – contact your local distributor for other currency list prices
  • 0.00
    0.00
  • Notify me when available
Add to List Add to List

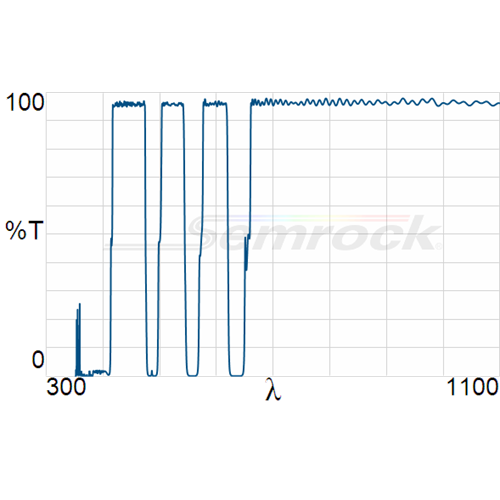

Optical Specifications Value
Transmission Band 1 Tavg > 93% 421 – 469 nm
Transmission Band 2 Tavg > 93% 506.5 – 537 nm
Transmission Band 3 Tavg > 93% 577 – 616 nm
Transmission Band 4 Tavg > 93% 662 – 1100 nm
Reflection Band 1 Rabs > 94% 370 – 410 nm
Reflection Band 1 (p-pol) Rabs > 90% 370 – 410 nm
Reflection Band 1 (s-pol) Rabs > 98% 370 – 410 nm
Reflection Band 2 Rabs > 94% 483 – 493 nm
Reflection Band 2 (p-pol) Rabs > 90% 483 – 493 nm
Reflection Band 2 (s-pol) Rabs > 98% 483 – 493 nm
Reflection Band 3 Rabs > 94% 550 – 565 nm
Reflection Band 3 (p-pol) Rabs > 90% 550 – 565 nm
Reflection Band 3 (s-pol) Rabs > 98% 550 – 565 nm
Reflection Band 4 Rabs > 94% 630 – 645 nm
Reflection Band 4 (p-pol) Rabs > 90% 630 – 645 nm
Reflection Band 4 (s-pol) Rabs > 98% 630 – 645 nm
Edge Wavelength 1 415.9 nm
Edge Wavelength 2 500.9 nm
Edge Wavelength 3 573.7 nm
Edge Wavelength 4 658.6 nm
General Filter Specifications Value
Angle of Incidence 45 degrees with a shift of 0.25%/degree (40 – 50 degrees)
Cone Half-angle 0.5 degrees
Flatness / RWE Classification   Laser
Reflected Wavefront Error < 1λ P-V RWE @ 632.8 nm
Steepness Steep
Assembly Instructions Value
Transverse Dimensions (L x W) 25.2 mm x 35.6 mm
Transverse Tolerance ± 0.1 mm
Clear Aperture ≥ 80% (elliptical)
Scratch-Dig 60-40
Substrate Type Fused Silica
Filter Thickness (unmounted) 1.05 mm
Filter Thickness Tolerance (unmounted) ± 0.05 mm
Dichroic Orientation Reflective surface marked with part number - Orient in direction of incoming light
