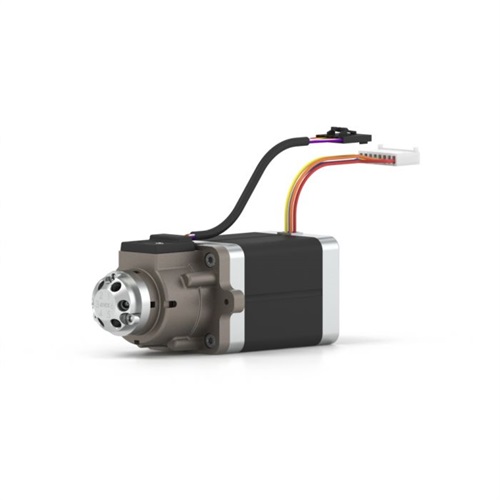

UHPLC Selector Valve, 2 Position/6 Port

IDEX Part Number: CV720-100 /

2 position compact valve

Specifications
Valve Resources

Material	SPC-3/RPC-17
Ports	6
Positions	2
Max Operating Pressure psi	18000
Valve Type	Ultra High Pressure, Selector
Valve Family	Compact Valve
For Tubing OD (in)	0.0625
For Tubing OD (µm)	1587.5
Max Operating Pressure Bar	1240
Thread Port Configuration Coned	10-32

Topic	Description
Understanding and Testing Fluid Flow for Custom Valve Design White Paper	There are many factors taken into consideration during the development of a valve design. Prototyping the complex geometries of valve stators can be expensive and time-consuming but with the use of simulation tools, we can iterate multiple designs quickly and select the most desirable solutions before the first parts are manufactured. Learn more.
Fittings 101 Guide	Discover the fundamentals of equipment fittings and accessories, as well as some basics about liquid chromatography as an analytical technique.
Chemical Compatibility Guide	This Chemical Compatibility guide will allow you to either check what materials will work with the chemicals you are using or planning to use; or view what compatibility ratings are given to a material you are planning to use.

Material: SPC-3/RPC-17
Ports: 6
Positions: 2
Max Operating Pressure psi: 18000
Valve Type: Ultra High Pressure, Selector
Valve Family: Compact Valve
For Tubing OD (in): 0.0625
For Tubing OD (µm): 1587.5
Max Operating Pressure Bar: 1240
Thread Port Configuration Coned: 10-32
