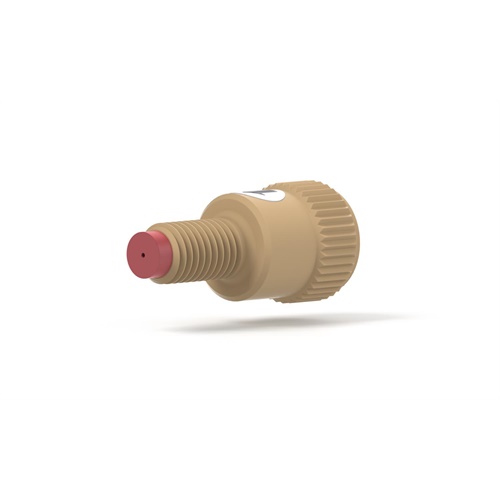

Our standard Inlet Check Valve adds back-flow protection to any 1/4-28 flat-bottom port. Made from PEEK, perfluoroelastomer, PTFE and stainless steel it offers excellent chemical resistance. It's spring actuated sealing system eliminates back-flow, helping prevent upstream contamination or damage. It has a cracking pressure of 15psi (1 bar) and a 1/4-28 Flat-Bottom Male to 1/4-28 Flat-Bottom Female thread port configuration.
Looking for a CAD file for this product? Request a CAD now!
Looking to design this product into your instrument? Fill out this form for more information.
-
EachUS Domestic pricing – contact your local distributor for other currency list prices
-
97.89 USD EachUS Domestic pricing – contact your local distributor for other currency list prices
-
-
0.000.00 -
-
- Notify me when available
| Material | PEEK |
|---|---|
| Pressure Rating Max (psi) | 2000 |
| Cracking Pressure (bar) | 1 |
| Cracking Pressure (psi) | 15 |
| Pressure Rating Max (bar) | 138 |
| Swept Volume µL | 20 |
| Thread Port Configuration Flat-Bottom | 1/4-28 |
total selected
Clear selection
Select all 2 products from all pages.
Out of Stock
Backordered
In Stock
1/16" OD Fitting, Flangeless Short
XP-235X / 0
- For use with 1/16" OD tubing mating with a 1/4-28 port
- Short nut for space limited applications
- Natural PEEK nut, blue ETFE ferrule
- Include P-200 Flangeless ferrule
- Recommended for pressures up to 2000 psi (1348bar)
- 10 per pack
